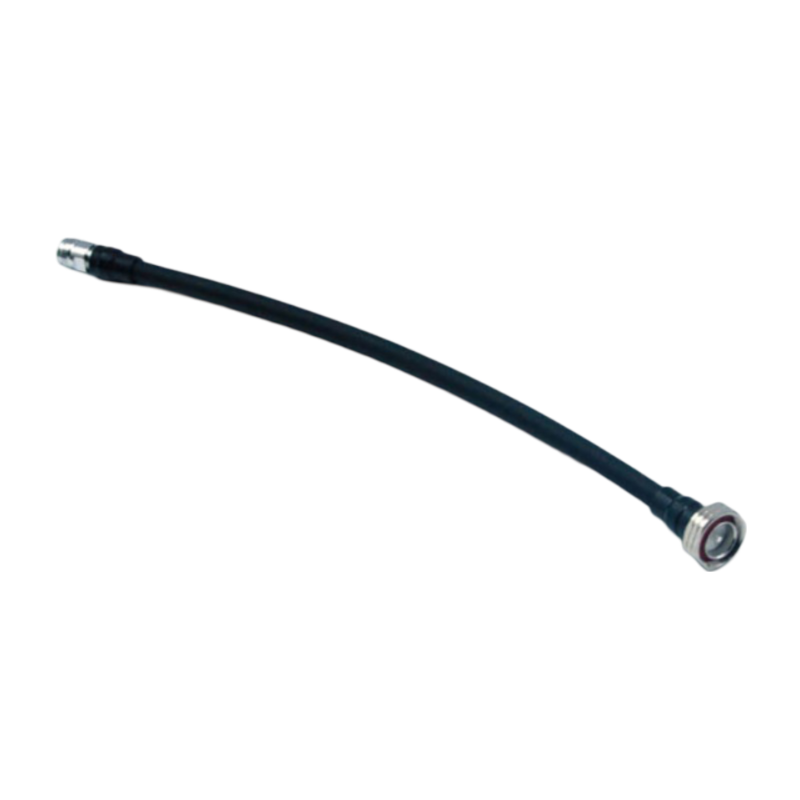

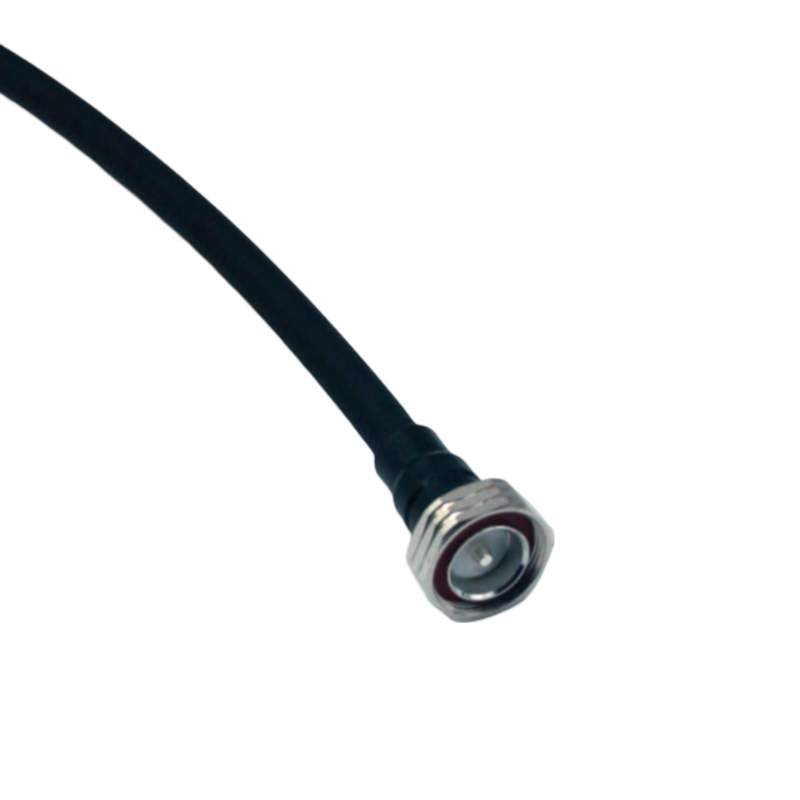

1/2" Superflex Jumper, 4.3/10 Female Straight to 7/16 DIN Male Straight

Model:7/16-H-J1/2S-10/4.3/10-H-K1/2S-L(m)

Consultation

Technical Indicators Packing

SPECIFICATION
1/2" Superflex Jumper, 4.3/10 Female Straight to 7/16 DIN Male Straight








P/N:7/16-H-J1/2S-10/4.3/10-H-K1/2S-L（m）
Interface
According to		IEC 61169-54 / IEC-60169-4
Electrical
Characteristic Impedance		50 ohm
Freqency Range		DC-3GHz
VSWR		≤1.12(0-3GHz)
PIM (@2-tonex20w)		≤-160dBc
Dielectric Withstanding Voltage		≥2500V RMS,50Hz,at sea level
Dielectric Resistance		≥5000MΩ
Contact Resistance		Center Contact ≤1.0mΩ
		Outer Contact ≤1.0mΩ
Mechanical
Durability		Mating cycles ≥100 cycles
Material and plating
	Material		Plating
Body	Brass		Tri-alloy
Insulator	PTFE		-
Center conductor	Phosphor bronze/Brass		Ag
Others	Brass		Ni
Environmental
RoHS-compliance		Full RoHS compliance
Temperature Range		-40℃～+85℃
Watertightness		IP68
Salt-fog test		96h

All products appearance, technical performance and electroplating can be customized according to customer requirements.

RF-Combination connectors of different connector series can be assembled as either straight or angle versions by using the corresponding clamps. With only one combination connector and the different cable clamps, a variety of connectors can be produced allowing a reduction in stock-levels. The technical specifications can be obtained from the descriptions in the respective chapters for each series.
For example: for ½” or ½”superflex jumper cable, DIN male straight(right angle)
on both sides, VSWR can reach less than 1.10@(0-3)GHz,
1.20@(0-6)GHz PIM less than -160dBc@(2-tone × 20W).

The packing pictures are only for reference, all packing can be customized by different requirements
