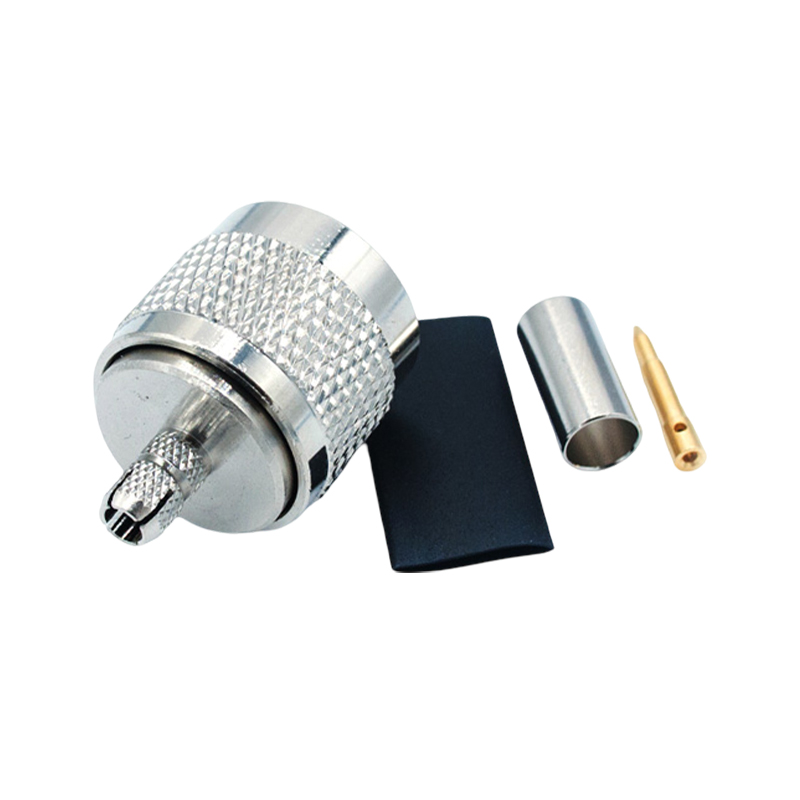

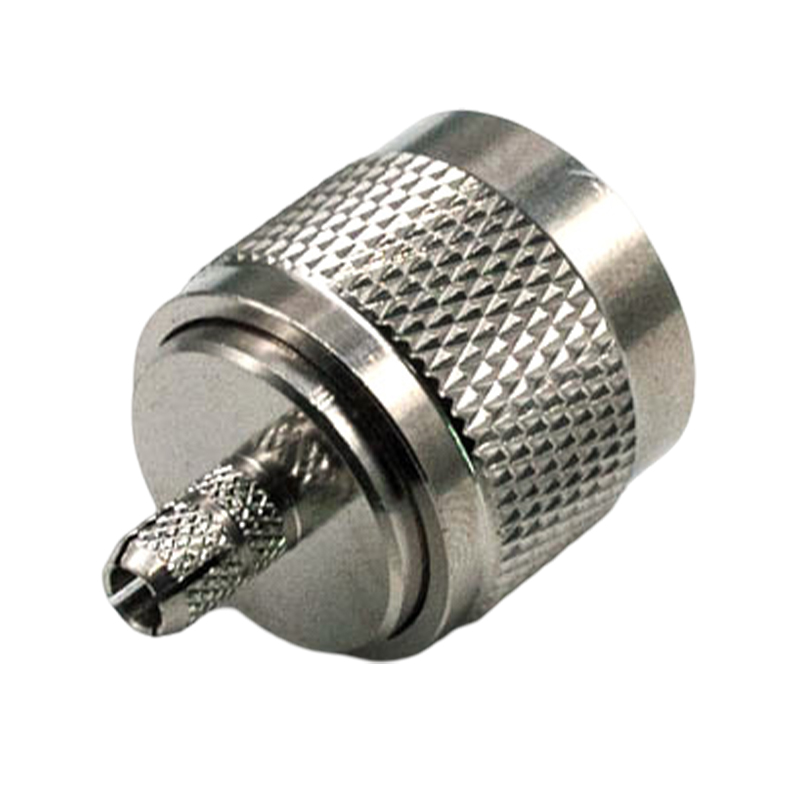

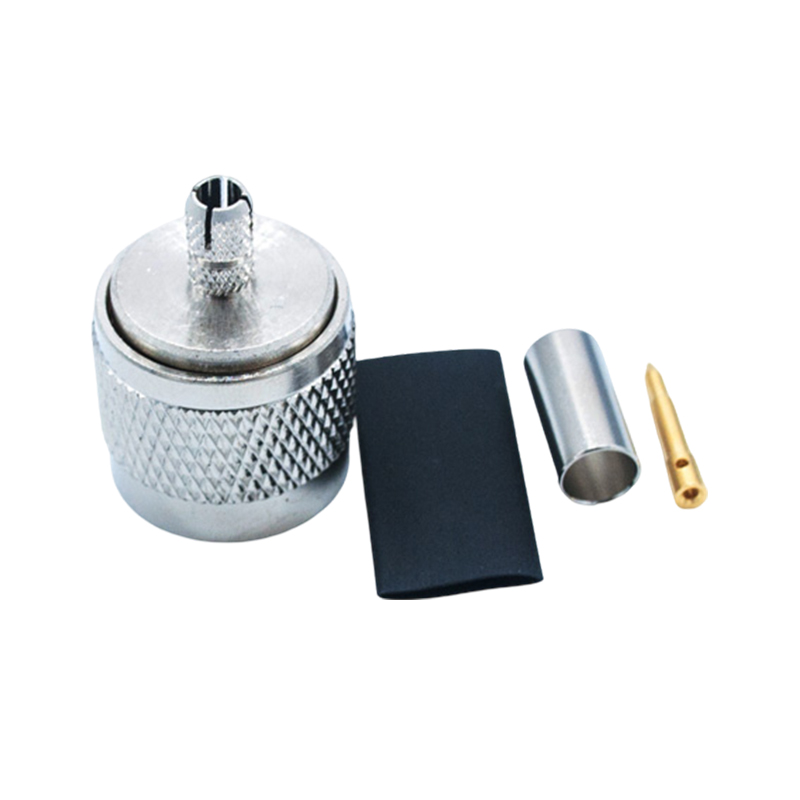

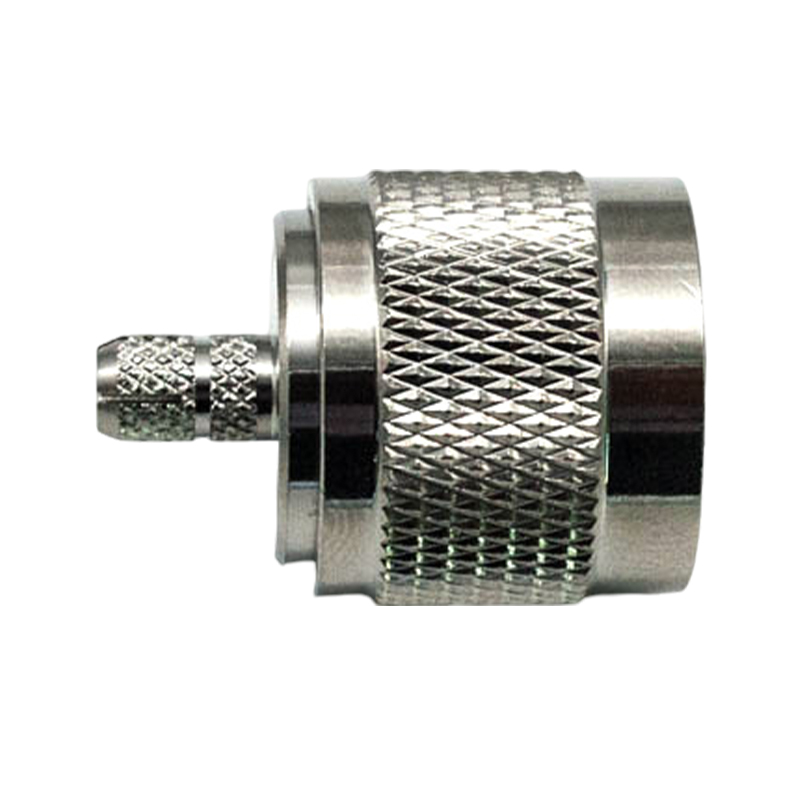

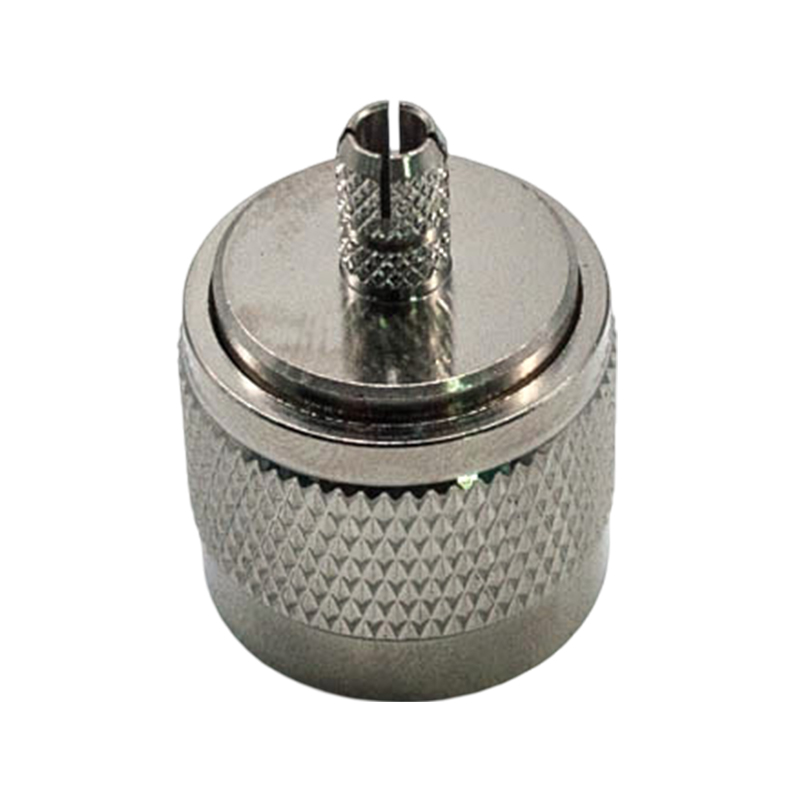

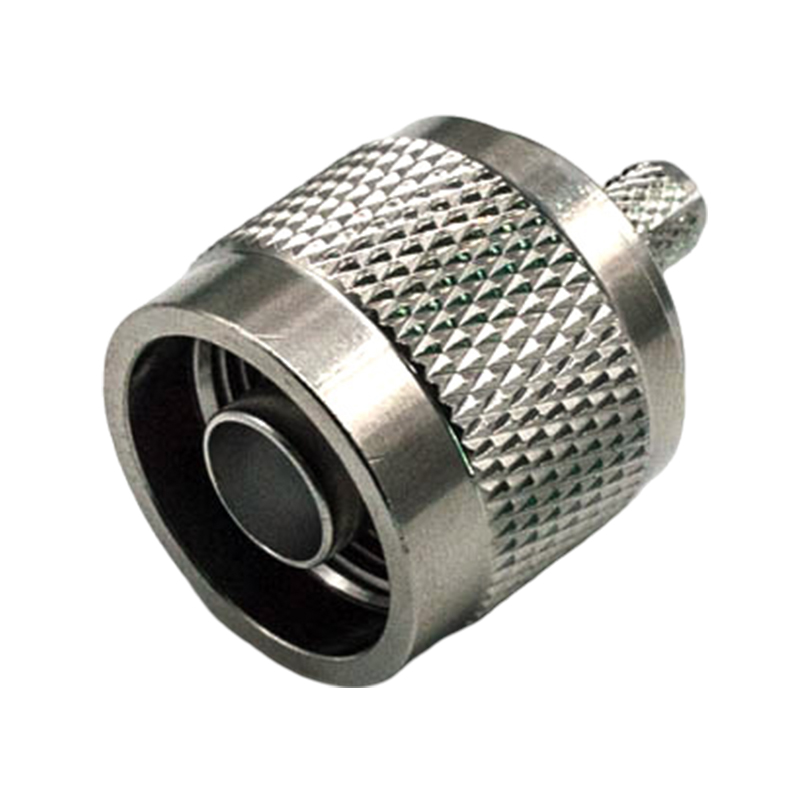

N MALE CONNECTOR FOR RG58 CABLE

Model:N-C-J5-1

Consultation

Technical Indicators Packing

SPECIFICATION
N MALE CONNECTOR FOR RG58 CABLE

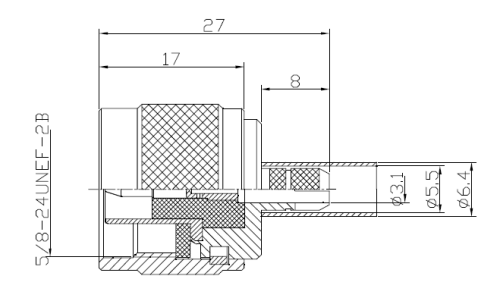

Part Number: N-C-J5-1 Dimensions are in millimeters
Interface
According to		IEC60169-16
Electrical
Characteristic Impedance		50 ohm
Frequency Range		DC-3GHz
VSWR		≤1.2
Dielectric Withstanding Voltage		≥2500V RMS,50Hz,at sea level
Dielectric Resistance		≥5000MΩ
Contact Resistance		Center Contact ≤1mΩ
		Outer Contact ≤0.25mΩ
Mechanical
Durability		Mating cycles ≥500
Material and Plating
	Material		Plating
Body Insulator Center conductor	Brass PTFE Brass		Ni - Au
Environmental
Temperature Range		-40℃～+85℃

RF means Radio Frequency.
RF is generally defined at 300MHz to 8GHz, while microwave is defined at 8G to 40G.
The ministry of industry and information technology has released the frequency use plan of 5G system within the frequency band of 3000-5000MHz, making China the first country in the world to release the frequency use plan of 5G system within the frequency band.
In the 5G era, the number of channels has become more and more integrated, and 5G RF connectors are mainly board-to-board blind plug connectors.

The packing pictures are only for reference, all packing can be customized by different requirements
