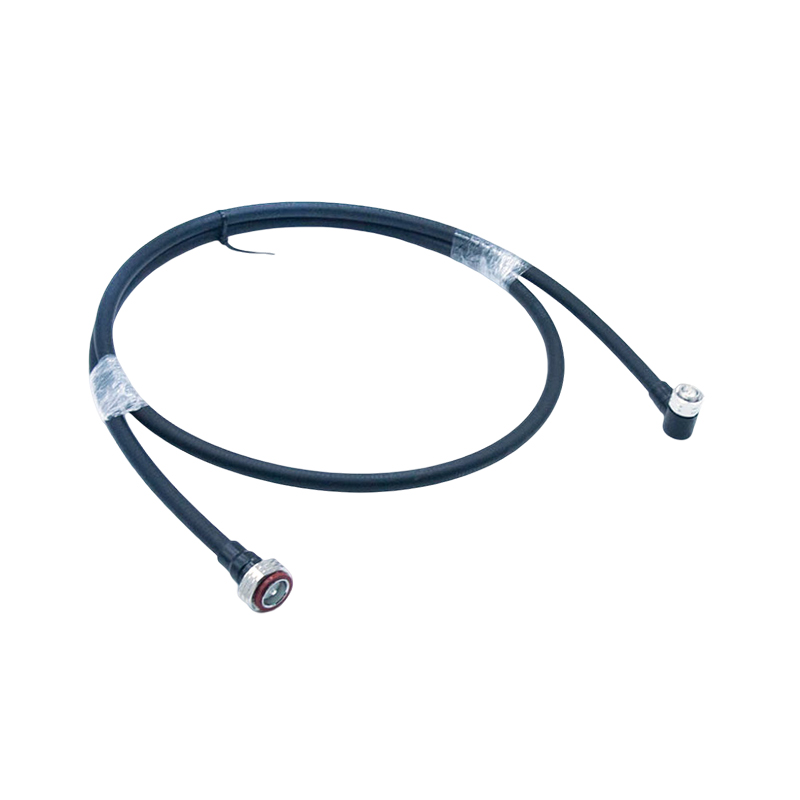

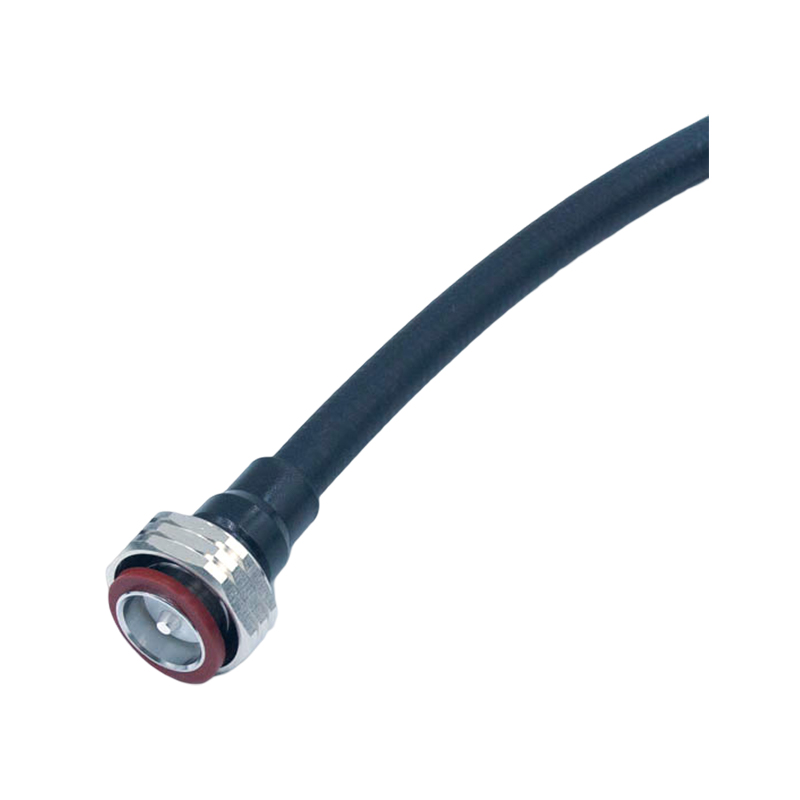

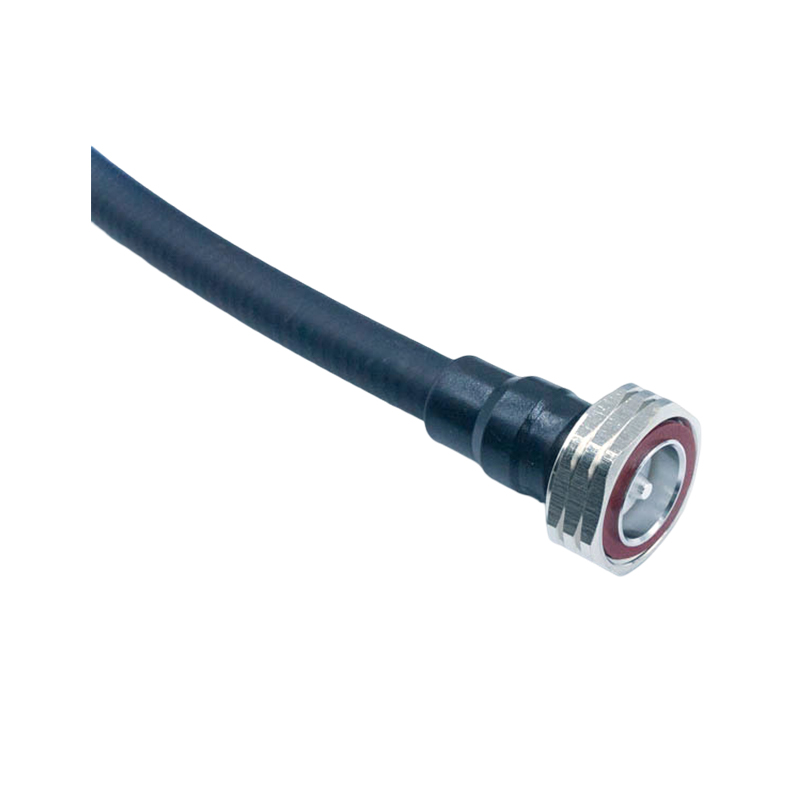

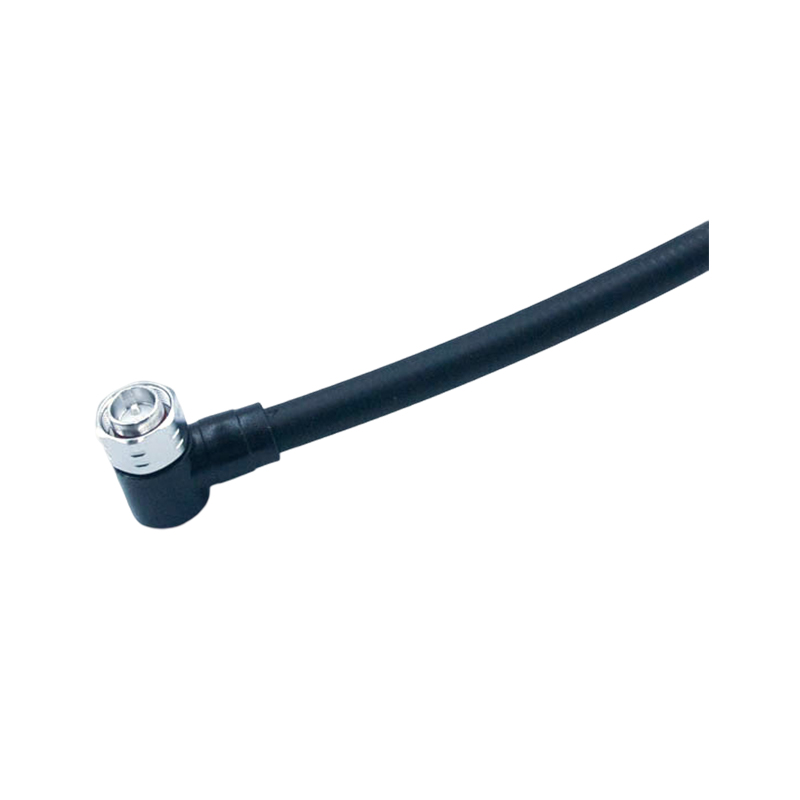

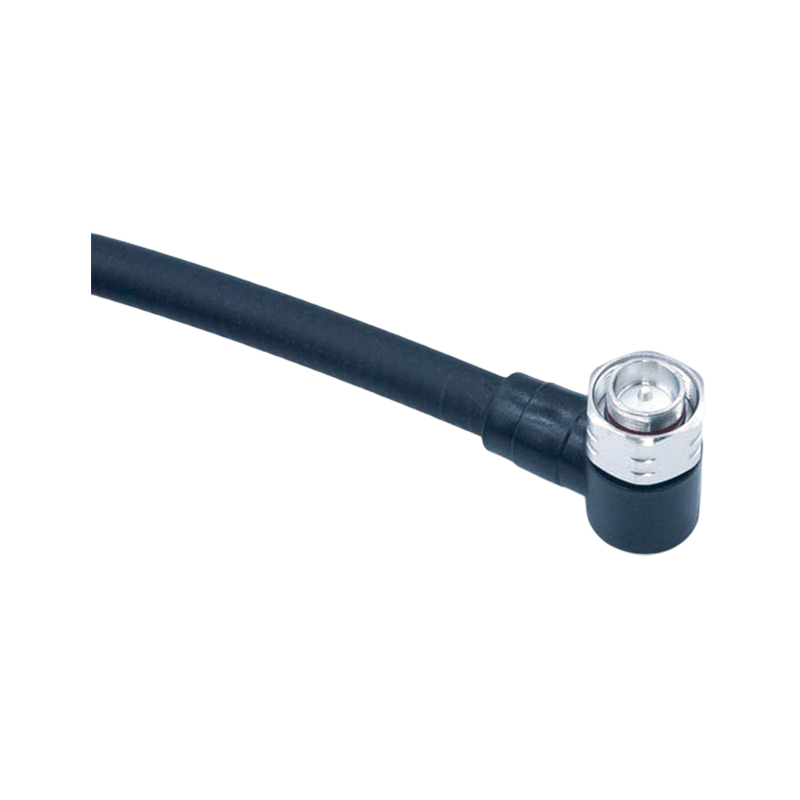

1/2" Superflex Jumper, 4.3/10 Male Right Angle to 7/16 DIN Male Straight

Model:7-16-H-J1-2S-10-4.3-10-H-JW1-2S-3-L(m)

Consultation

Technical Indicators Packing

SPECIFICATION

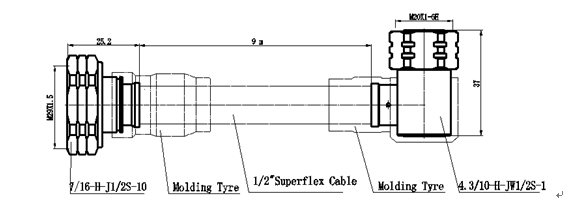

1/2" Superflex Jumper, 4.3/10 Male Right Angle to 7/16 DIN Male Straight









P/N:7/16-H-J1/2S-10/4.3/10-H-JW1/2S-3-L(m)
Interface
According to	IEC 61169-54 / IEC-60169-4
Electrical
Characteristic Impedance	50 ohm
Freqency Range	DC-3GHz
VSWR	≤1.15(0-3GHz)
PIM (@2-tonex20w)	≤-160dBc
Dielectric Withstanding Voltage	≥2500V RMS,50Hz,at sea level
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center Contact ≤1.0mΩ
	Outer Contact ≤1.0mΩ
Mechanical
Durability	Mating cycles ≥100 cycles
Material and plating
	Material	Plating
Body	Brass	Tri-alloy
Insulator	PTFE	-
Center conductor	Phosphor bronze/Brass	Ag
Others	Brass	Ni
Environmental
RoHS-compliance	Full RoHS compliance
Temperature Range	-40℃～+85℃
Watertightness	IP68
Salt-fog test	96h

RF means Radio Frequency.
RF is generally defined at 300MHz to 8GHz, while microwave is defined at 8G to 40G.
The ministry of industry and information technology has released the frequency use plan of 5G system within the frequency band of 3000-5000MHz, making China the first country in the world to release the frequency use plan of 5G system within the frequency band.
In the 5G era, the number of channels has become more and more integrated, and 5G RF connectors are mainly board-to-board blind plug connectors.

The packing pictures are only for reference, all packing can be customized by different requirements
