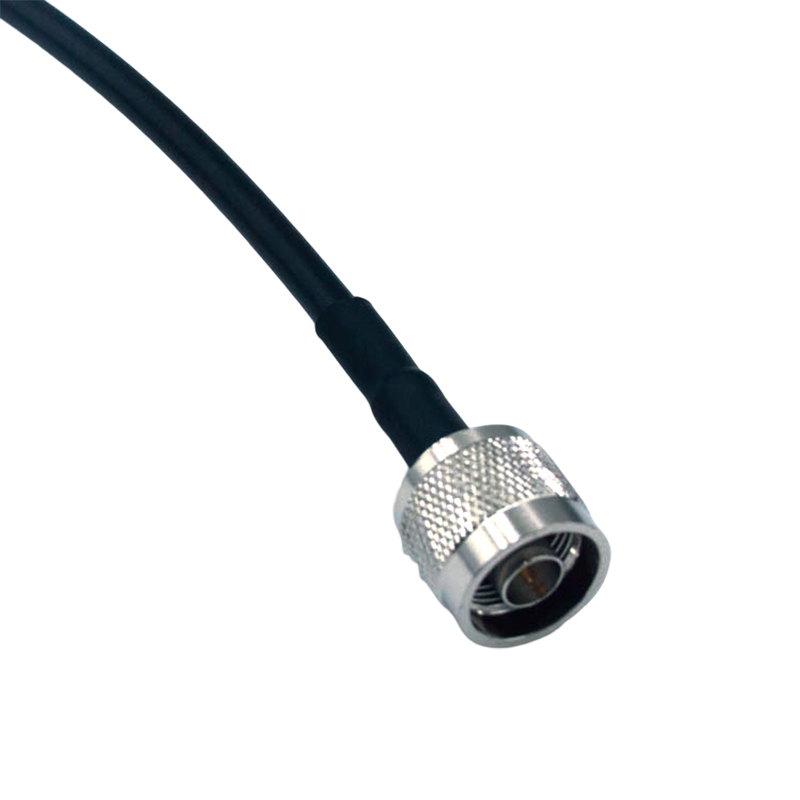

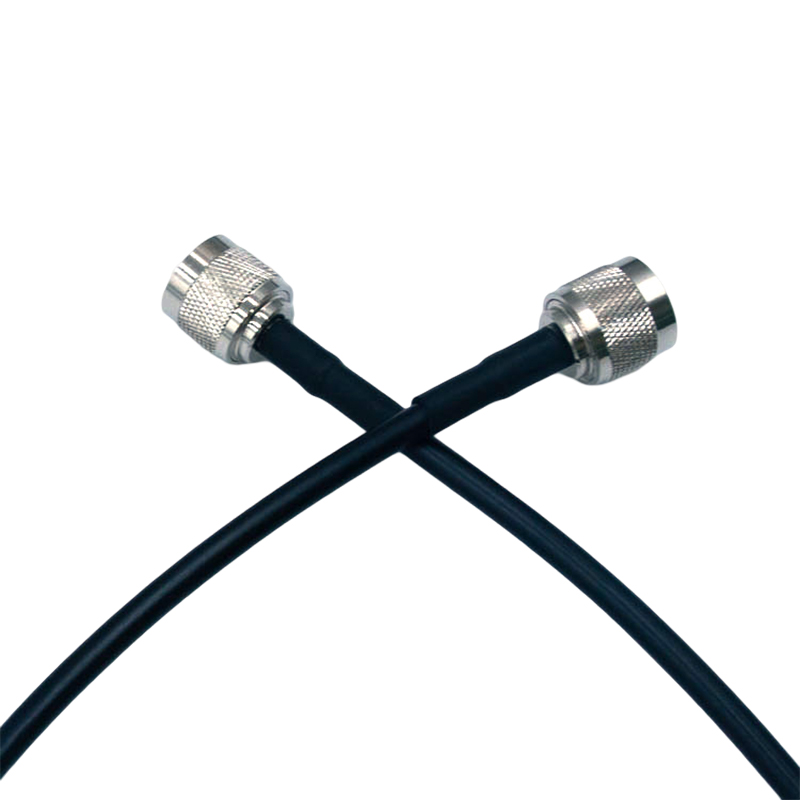

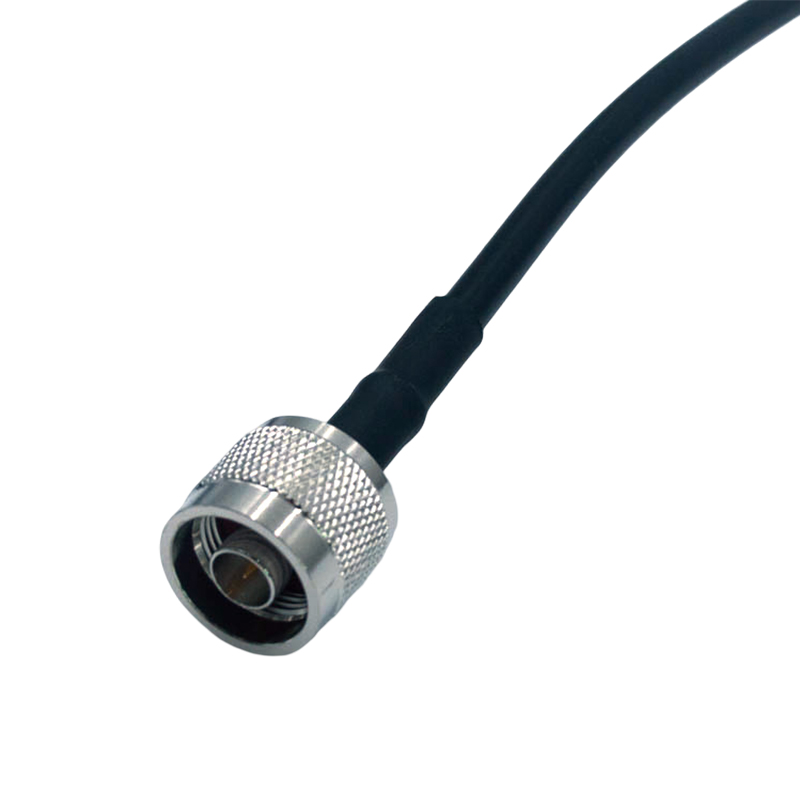

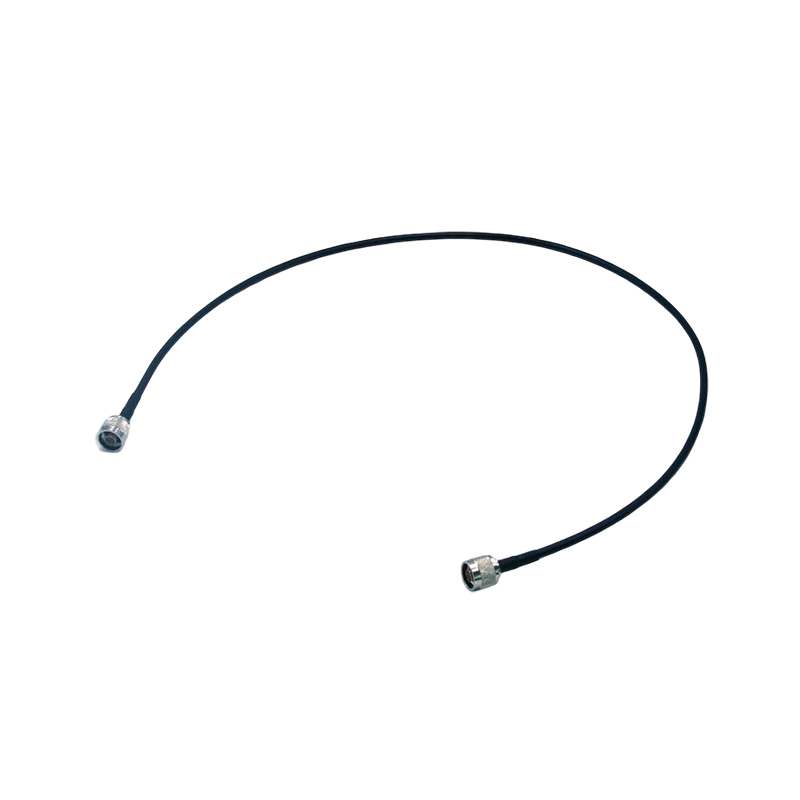

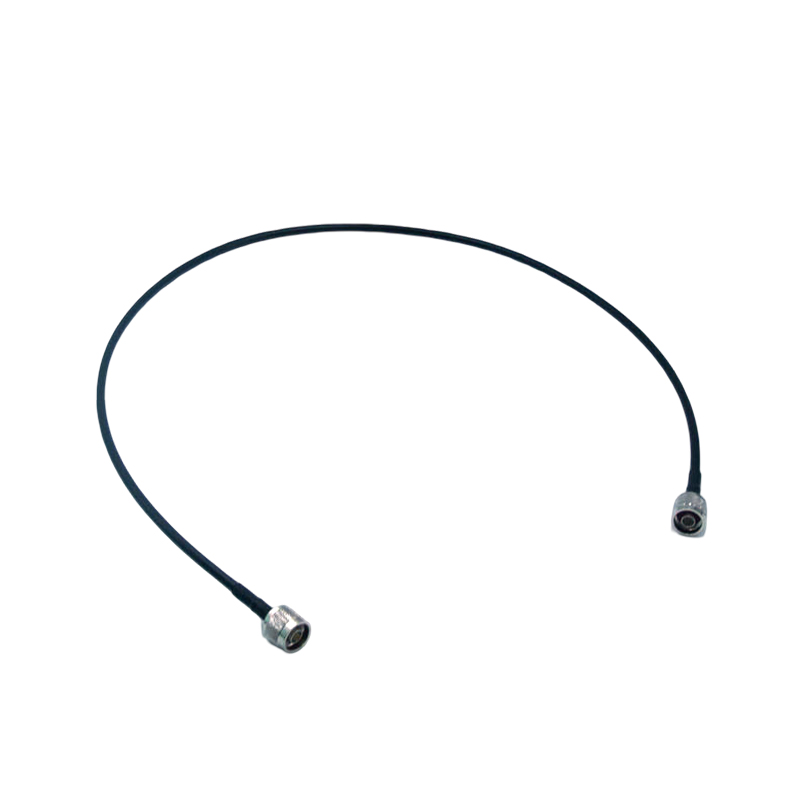

LMR240 Jumper Cable, N Male Connector to N Male Connector, L(m)

LMR240 Jumper Cable, N Male Connector to N Male Connector, L(m)

Model:N-C-J240-3-N-C-J240-3-L(m)

Consultation

Technical Indicators Packing

SPECIFICATION
LMR240 Jumper Cable, N male connector to N male connector, L(m)
P/N:N-C-J240-3-N-C-J240-3-L(m)

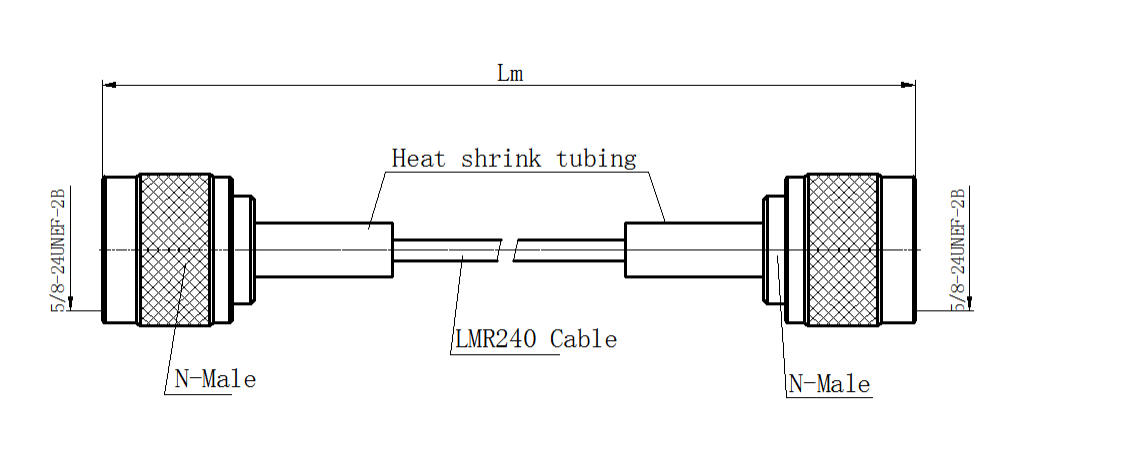

Dimensions are in millimeters
Interface
According to			IEC 61169-16
Electrical
Characteristic Impedance			50 ohm
Frequency Range			DC-6GHz
VSWR(0-6GHz)			≤1.35
Insertion Loss (3GHz)			db/100*L(m)+0.2dB
Mechanical
Durability			Mating cycles ≥500 cycles
Material and plating
	Material			Plating
Body	Brass			Ni
Insulator	PTFE			-
Center conductor Nut Gasket	Brass Brass Silicone rubber			Au Ni -
Environmental
Temperature Range		-40℃～+85℃
Salt-fog test		96h
RoHS-compliance		Full RoHS compliance

RF means Radio Frequency.
RF is generally defined at 300MHz to 8GHz, while microwave is defined at 8G to 40G.
The ministry of industry and information technology has released the frequency use plan of 5G system within the frequency band of 3000-5000MHz, making China the first country in the world to release the frequency use plan of 5G system within the frequency band.
In the 5G era, the number of channels has become more and more integrated, and 5G RF connectors are mainly board-to-board blind plug connectors.

The packing pictures are only for reference, all packing can be customized by different requirements
