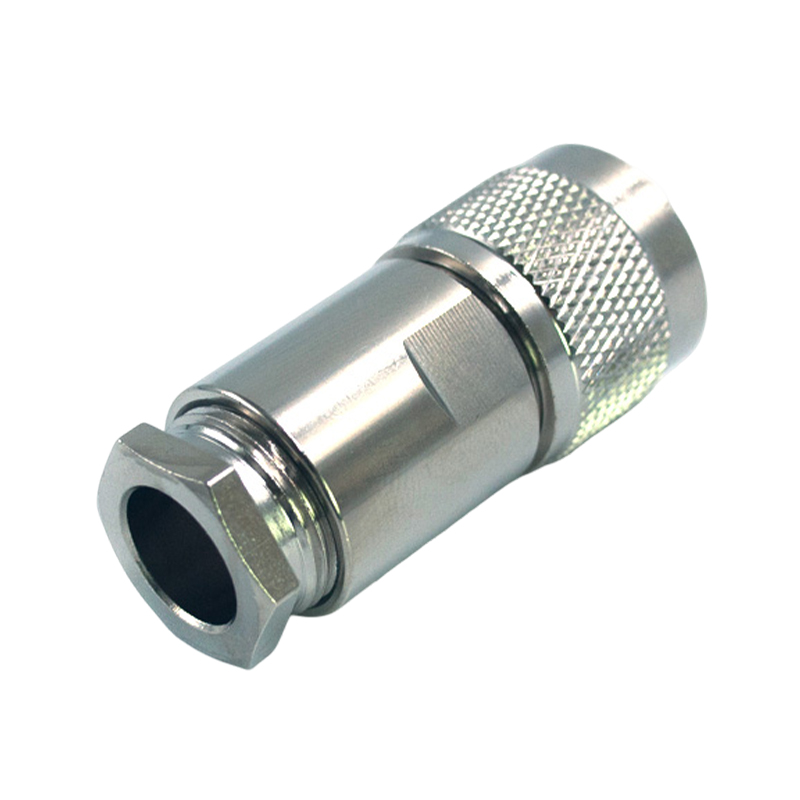

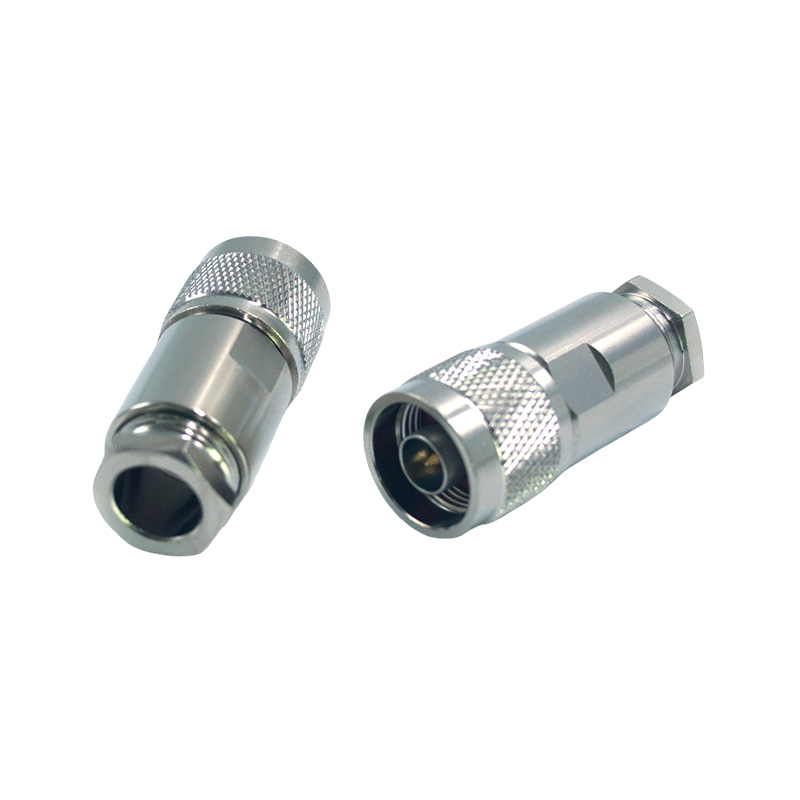

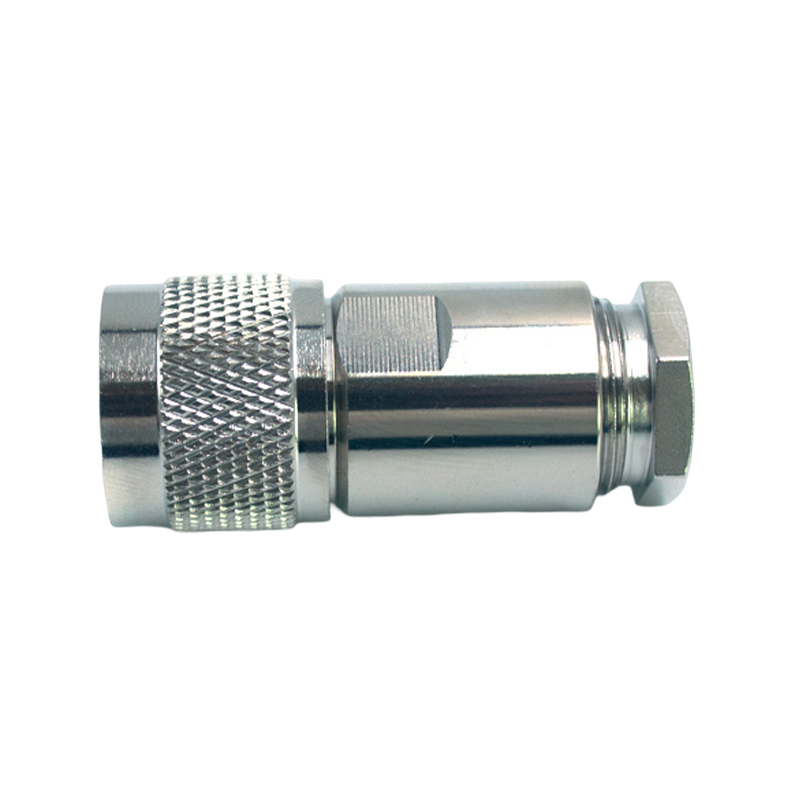

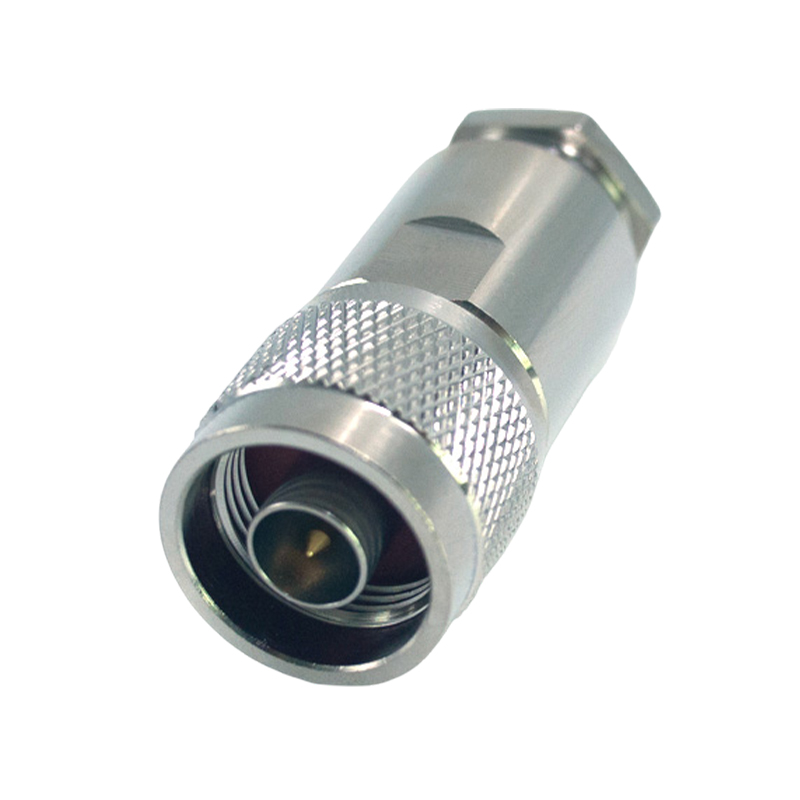

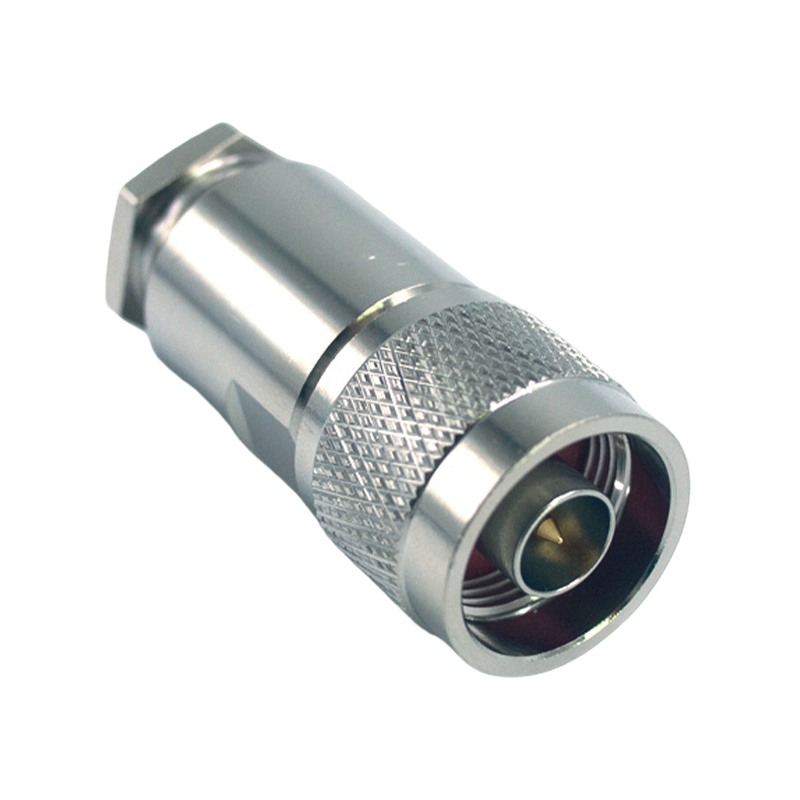

N Male Connector for 7D-FB Cable

Model:N-J7H-3

Consultation

Technical Indicators Packing

SPECIFICATION
N Male connector for 7D-FB Cable

P/N: N-J7H-3

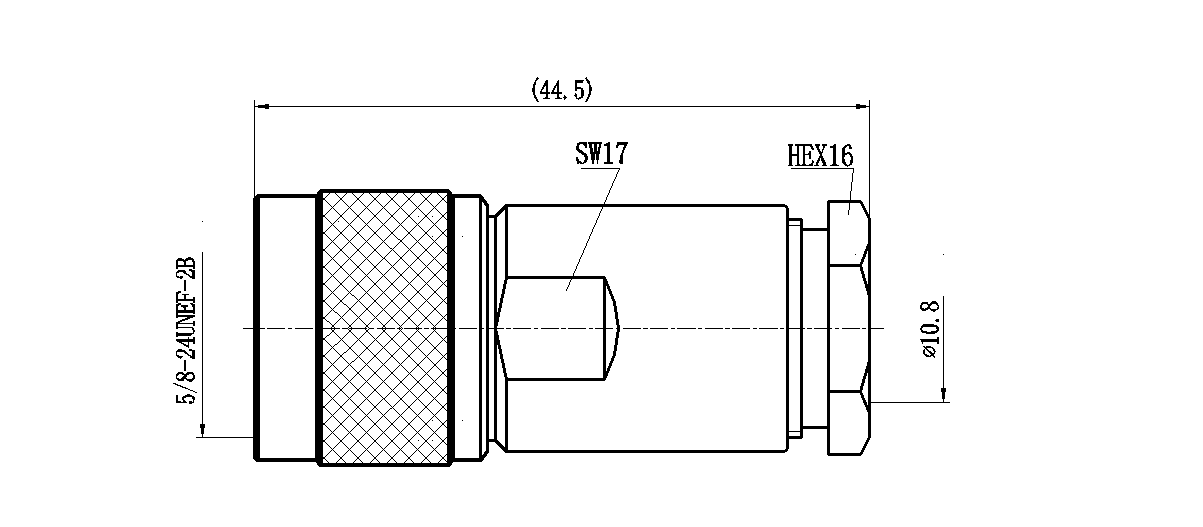

Dimensions are in millimeters
Interface
According to			IEC 60169-16
Electrical
Characteristic Impedance			50 ohm
Frequency Range			DC-3GHz
VSWR			≤1.15
Dielectric Resistance			≥5000MΩ
Contact Resistance			Center Contact ≤1mΩ
			Outer Contact ≤0.25mΩ
Mechanical
Durability			Mating cycles ≥500 cycles
Material and plating
	Material			Plating
Body	Brass			Ni
Insulator	PTFE			-
Center conductor Nut Gasket	Phosphor bronze Brass Silicone rubber			Au Ni
Environmental
Temperature Range		-40℃～+85℃
Salt-fog test		96h
RoHS-compliance		Full RoHS compliance

RF means Radio Frequency.
RF is generally defined at 300MHz to 8GHz, while microwave is defined at 8G to 40G.
The ministry of industry and information technology has released the frequency use plan of 5G system within the frequency band of 3000-5000MHz, making China the first country in the world to release the frequency use plan of 5G system within the frequency band.
In the 5G era, the number of channels has become more and more integrated, and 5G RF connectors are mainly board-to-board blind plug connectors.

The packing pictures are only for reference, all packing can be customized by different requirements
