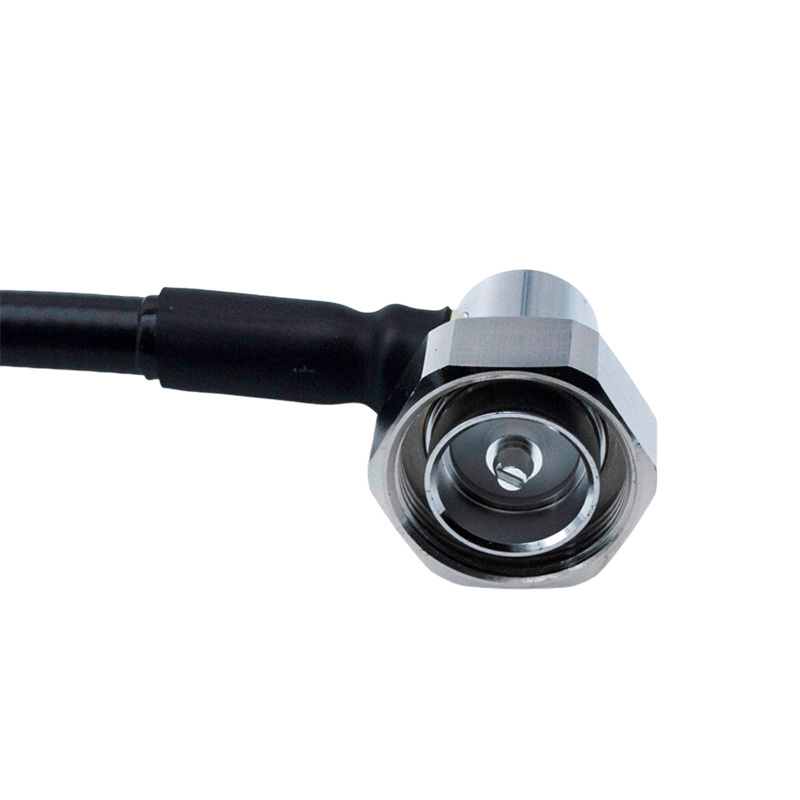

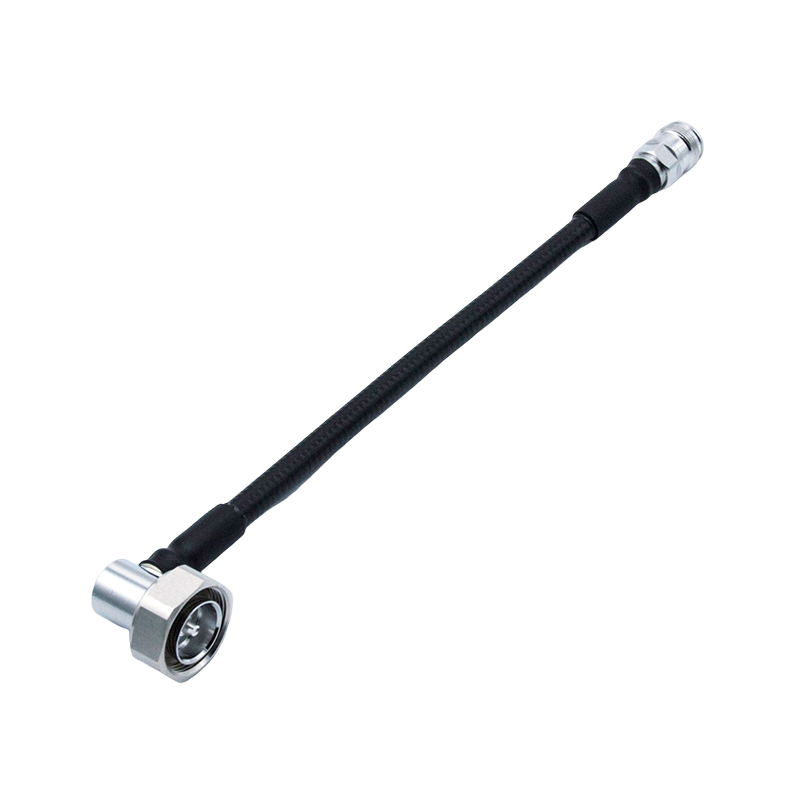

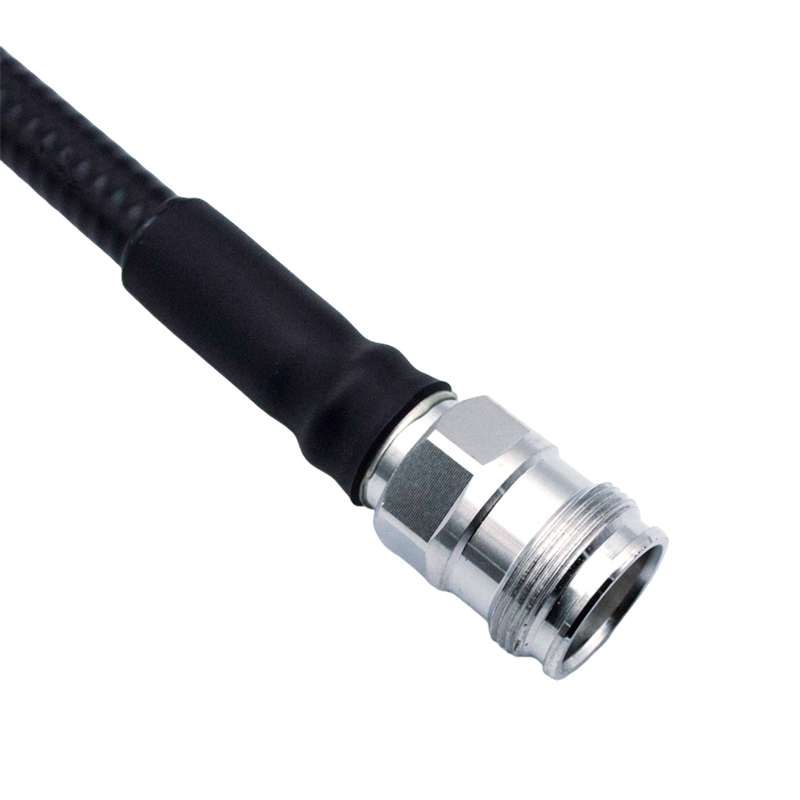

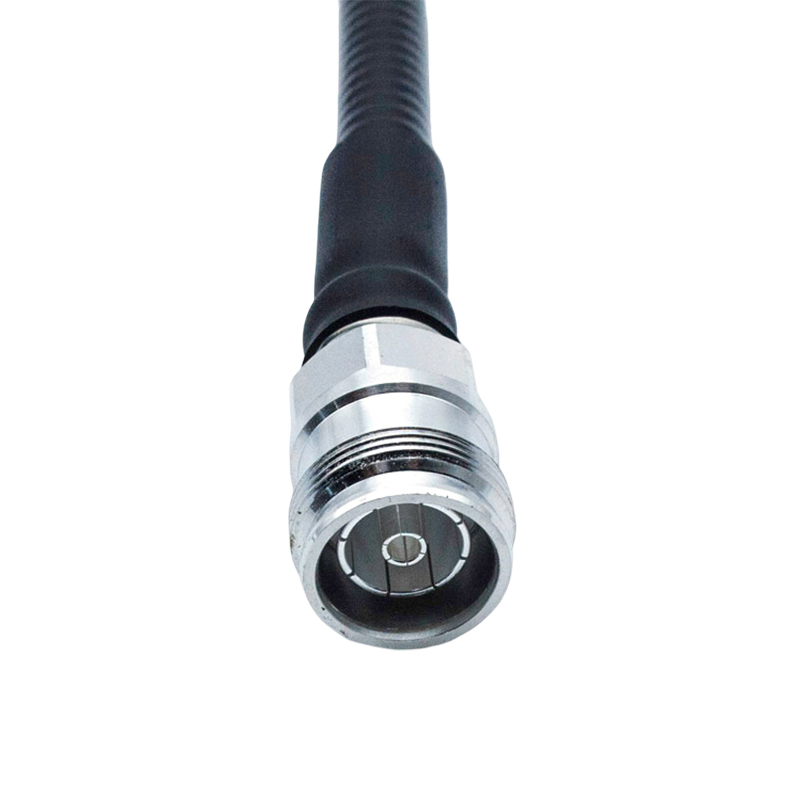

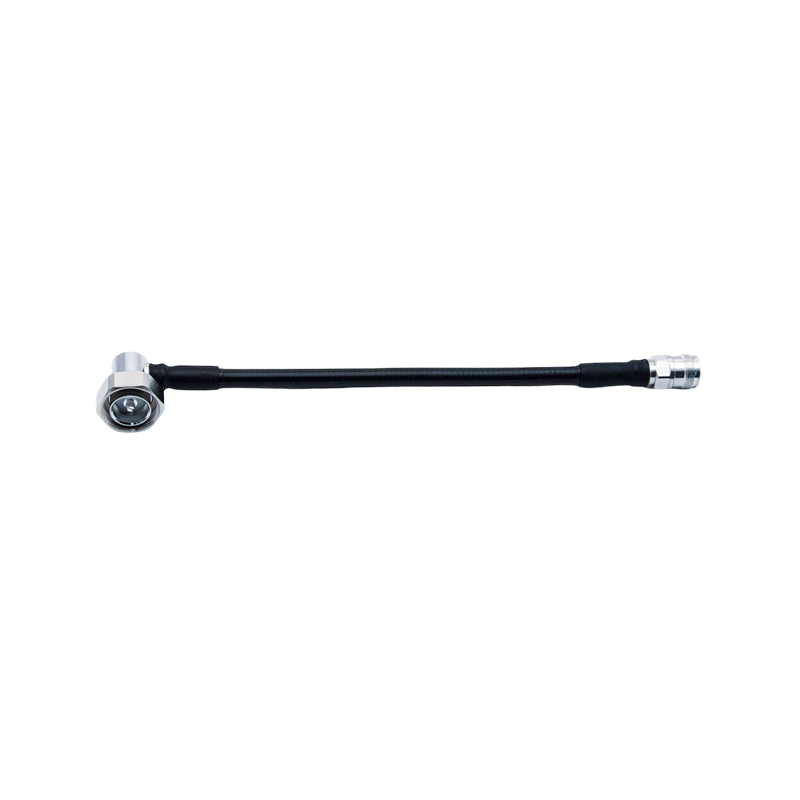

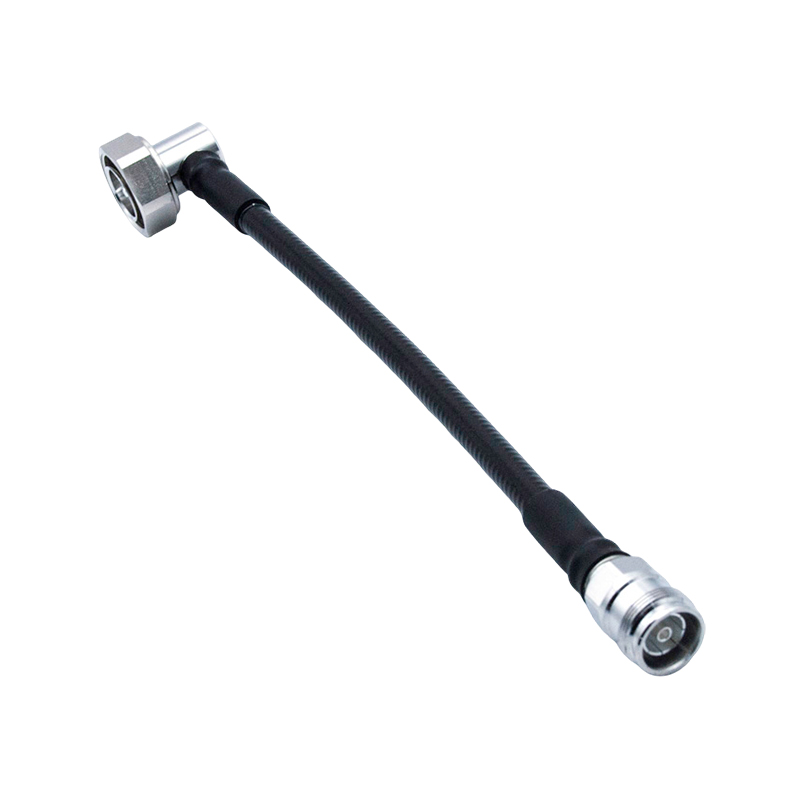

3-8”Superflex Jumper, 7-16 Male RA To 4.3-10 Female

3-8”Superflex Jumper, 7-16 Male RA To 4.3-10 Female

Model:7-16-H-JW3-8SR-1-4.3-10-H-K3-8S-L(m)

Consultation

Technical Indicators Packing

SPECIFICATION
3-8”Superflex Jumper, 7-16 Male RA To 4.3-10 Female

P/N：7/16-H-JW3/8SR-1/4.3/10-H-K3/8S-L(m) Dimensions are in millimeters
Interface
According to			IEC60169-4/IEC 60169-54
Electrical
Characteristic Impedance			50 ohm
Frequency Range			0-4GHz
VSWR			≤1.25
PIM ( @2-tonex20w)			≤-160dBc
Dielectric Resistance			≥5000MΩ
Mechanical
Durability			Mating cycles ≥100 cycles
Material and plating
	Material			Plating
Body	Brass			Tri-Alloy
Insulator	PTFE			-
Center conductor	Brass			Ag
Environmental
Temperature Range		-40℃～+85℃
Water tightness		IP68
RoHS-compliance		Full RoHS compliance
Salt-fog test		96h

RF-Combination connectors of different connector series can be assembled as either straight or angle versions by using the corresponding clamps. With only one combination connector and the different cable clamps, a variety of connectors can be produced allowing a reduction in stock-levels. The technical specifications can be obtained from the descriptions in the respective chapters for each series.
For example: for ½” or ½”superflex jumper cable, DIN male straight(right angle)
on both sides, VSWR can reach less than 1.10@(0-3)GHz,
1.20@(0-6)GHz PIM less than -160dBc@(2-tone × 20W)

The packing pictures are only for reference, all packing can be customized by different requirements
