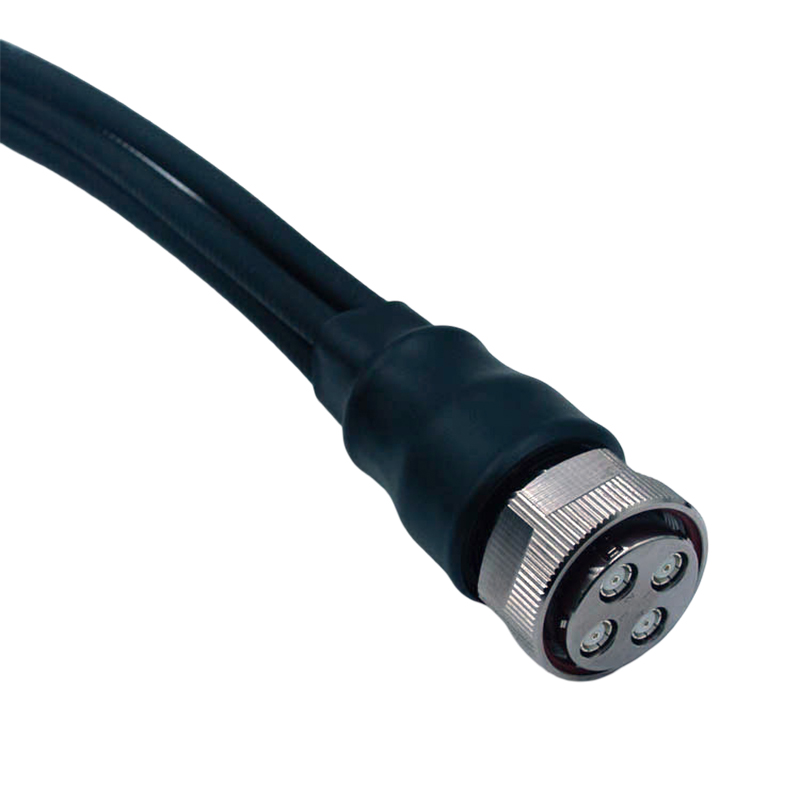

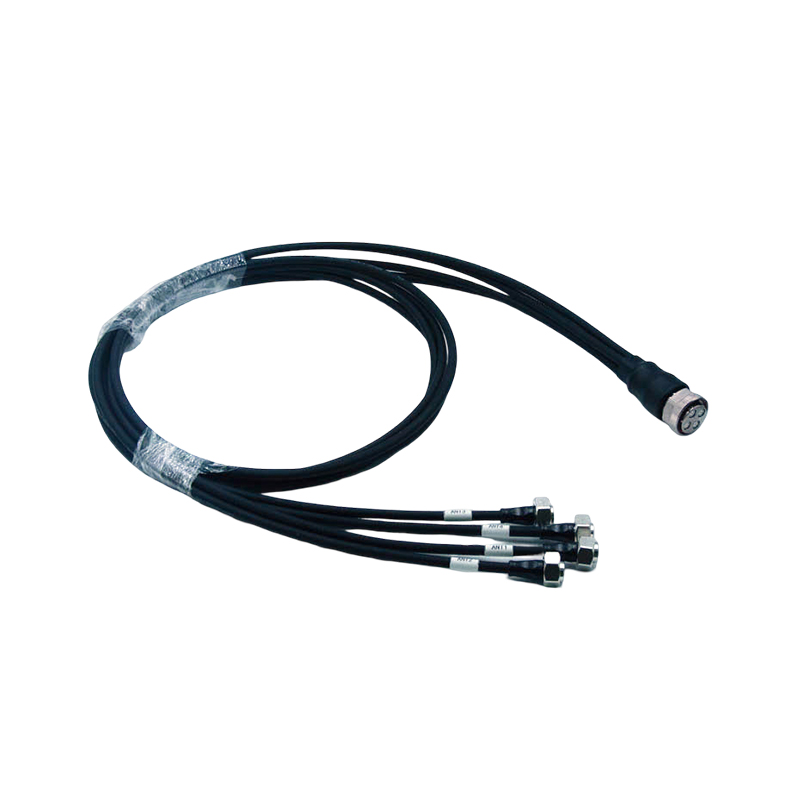

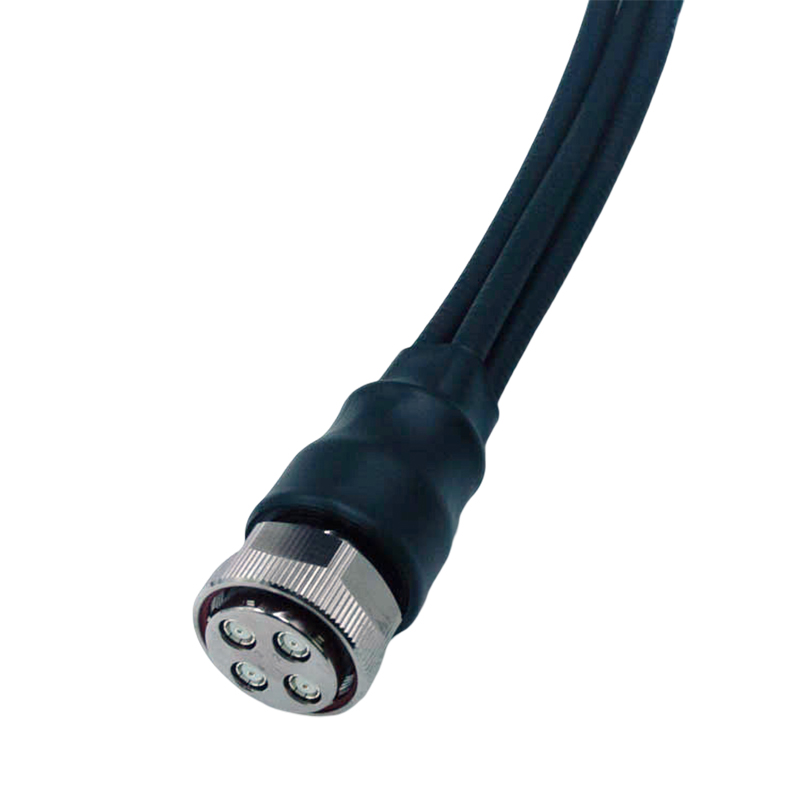

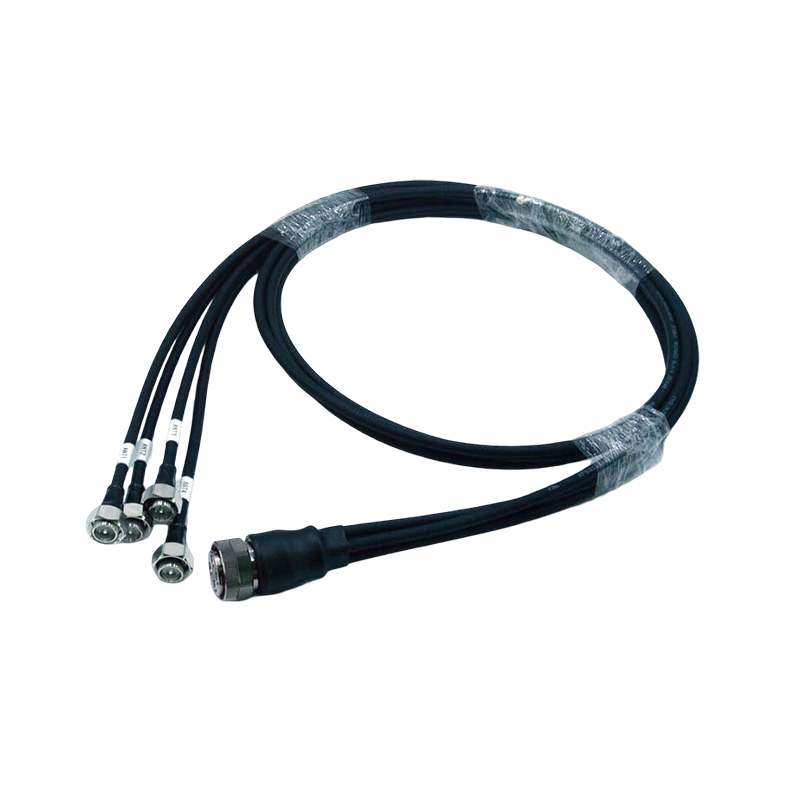

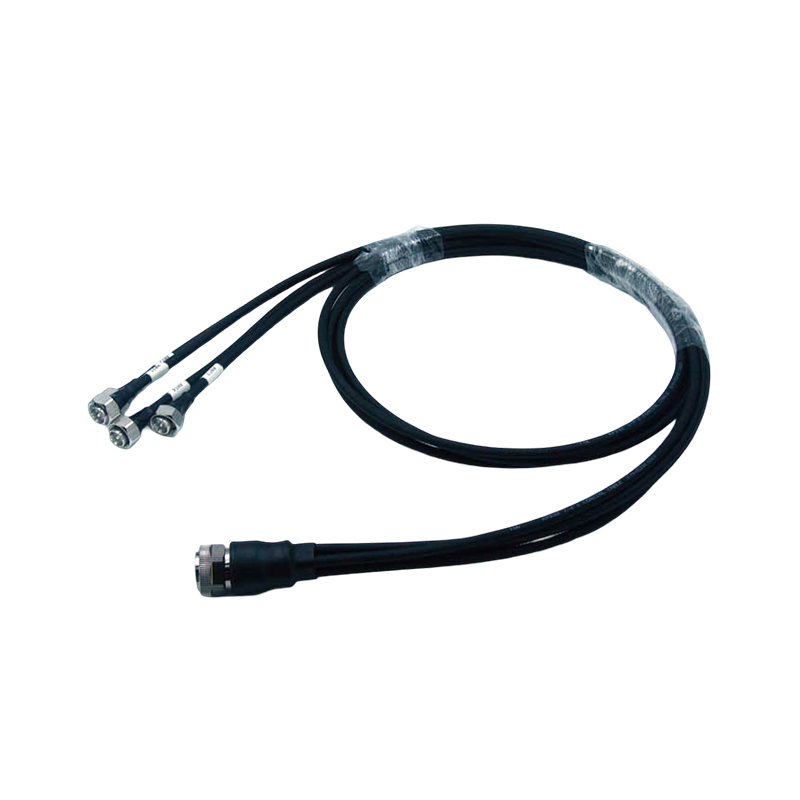

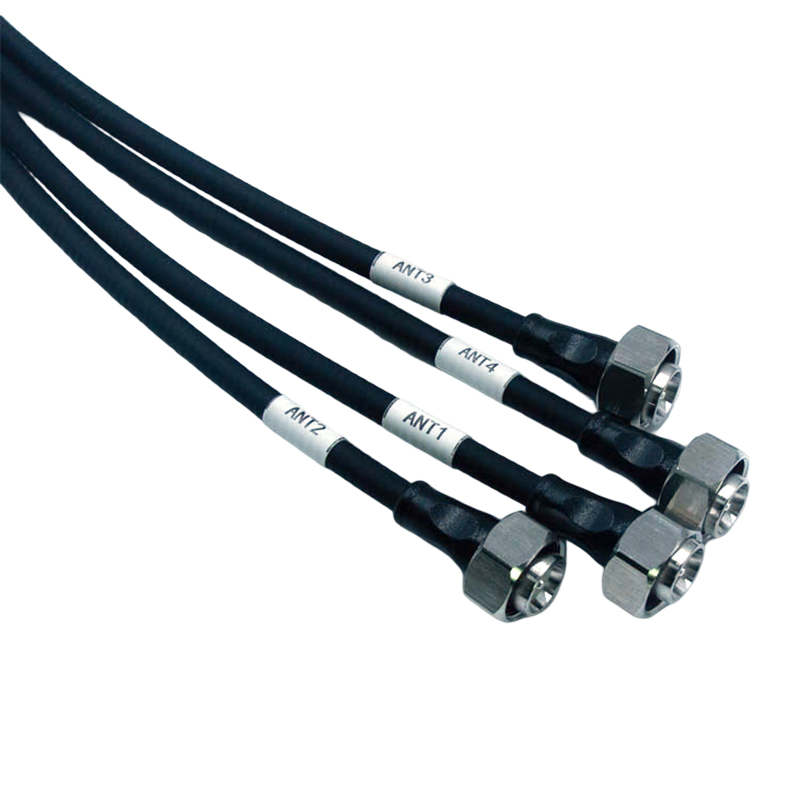

1/4” Superflexible Jumper Cable, MQ4 Plug to 4.3/10 Male, L(m)

1/4” Superflexible Jumper Cable, MQ4 Plug to 4.3/10 Male, L(m)

Model:MQ4-K1-4S-3-4.3-10-H-J1-4S-8-L(m)

Consultation

Technical Indicators Packing

SPECIFICATION

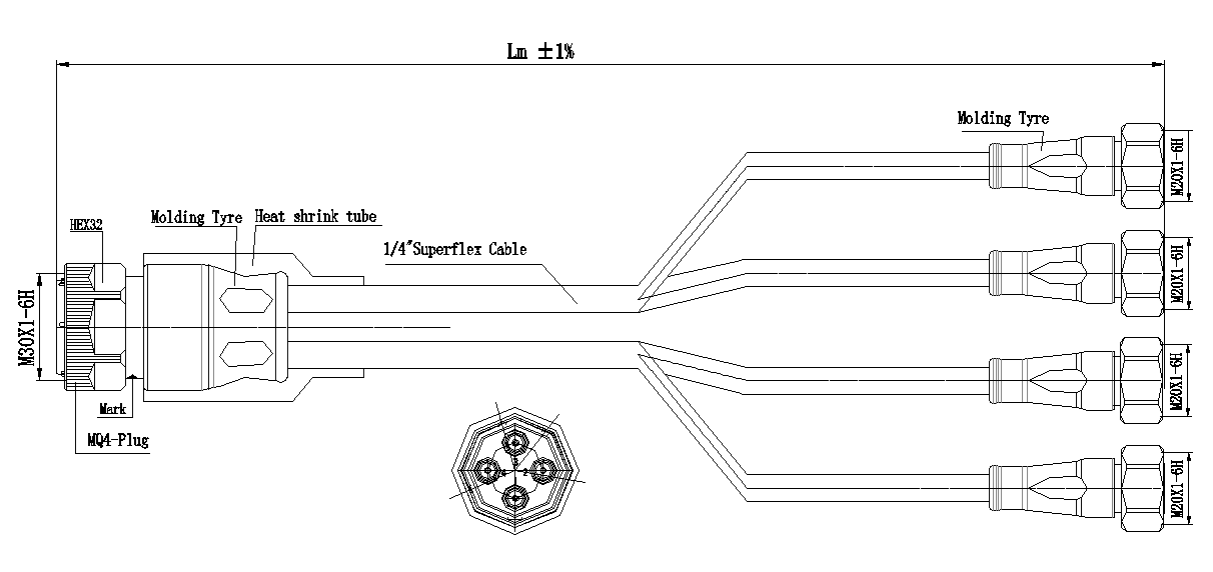

1/4” Superflexible Jumper Cable, MQ4 Plug to 4.3/10 Male, L(m)
P/N: MQ4-K1/4S-3/4.3-10-H-J1/4S-8-L(m)
Interface
IEC 63138-2 IEC60169-54
Electrical Characteristics
Impedance			50 ohm
Frequency Range			DC-6GHz
VSWR (Including using adaptors to test)			(DC-2.2GHz)≤1.12 (2.2-2.7GHz)≤1.15 (2.7-4.2GHz)≤1.20 (4.2-6.0GHz)≤1.35
PIM3 (2X43dBm)			≤-158dBc
Dielectric Withstanding Voltage Insulation Resistance			≥1000V RMS,50Hz,at sea level ≥5000MΩ
Isolation(dB) (DC-2.2GHz) (2.2-2.7GHz) (2.7-3.8GHz) (3.8-5.0GHz) (5.0-6.0GHz) Isolation Degree			≤0.35L+20.05√f dB ≤0.38L+20.05√f dB ≤0.47L+20.05√f dB ≤0.53L+20.05√f dB ≤0.60L+20.05√f dB ≥90dB@2GHz
Mechanical Characteristics
Durability			≥100 cycles
Material & Plating
	Material			Plating
Body (4.3/10M) Body (MQ) Grooved contact (MQ)	Brass Brass Beryllium			Tri-alloy 3um Ni-SnAlloy3um + Ag 3um Ag 3um
Insulator	PTFE			-
Center Contact(MQ) Center Contact(4.3/10M) Nut (MQ) Nut (4.3/10M) O-ring	Beryllium Brass Brass Brass Silicone Rubber			Ag 5um Ag 5um Ni-Sn Alloy5um Tri-alloy 3um -
Environmental Characteristics
Temperature Range		-55℃～+125℃
Waterproof Tightness		IP68
Environmental Compliance		Full RoHS Compliance
Salt-fog Test(Neutral )		720h(Ni-Sn Alloy parts)

RF-Combination connectors of different connector series can be assembled as either straight or angle versions by using the corresponding clamps. With only one combination connector and the different cable clamps, a variety of connectors can be produced allowing a reduction in stock-levels. The technical specifications can be obtained from the descriptions in the respective chapters for each series.
For example: for ½” or ½”superflex jumper cable, DIN male straight(right angle)
on both sides, VSWR can reach less than 1.10@(0-3)GHz,
1.20@(0-6)GHz PIM less than -160dBc@(2-tone × 20W)

The packing pictures are only for reference, all packing can be customized by different requirements
