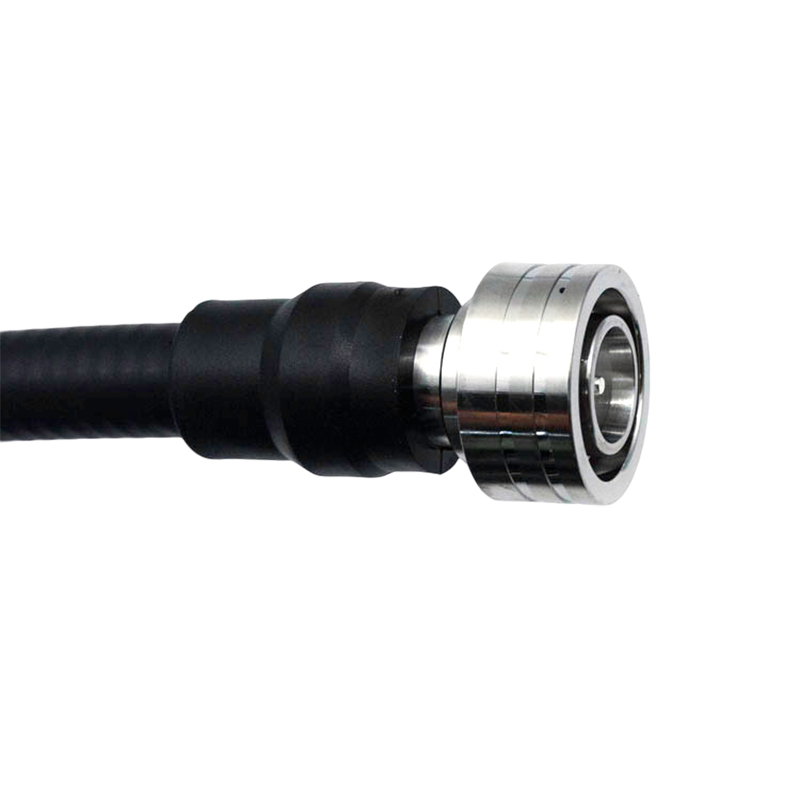

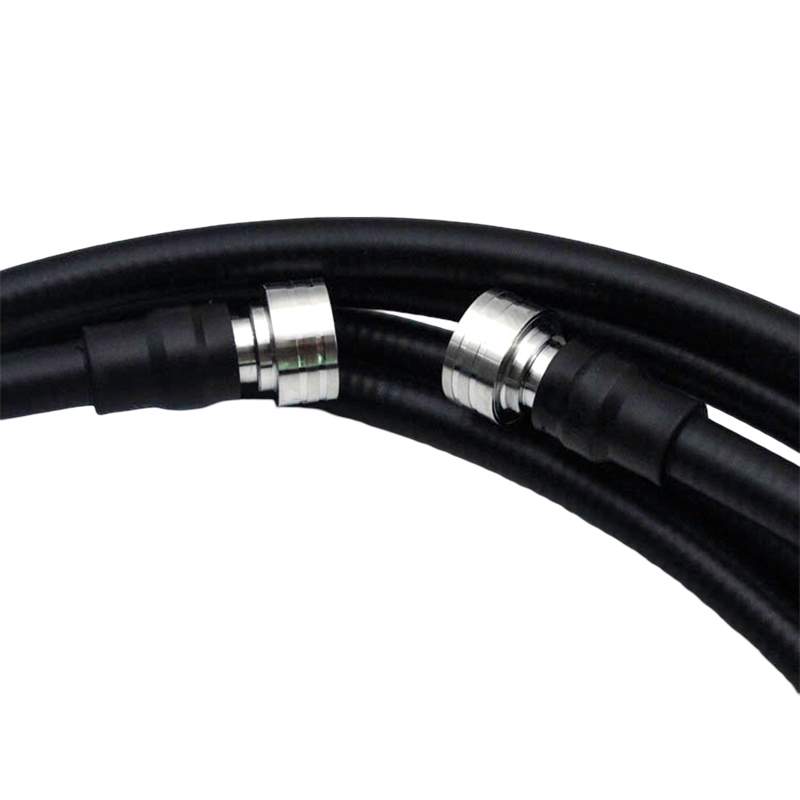

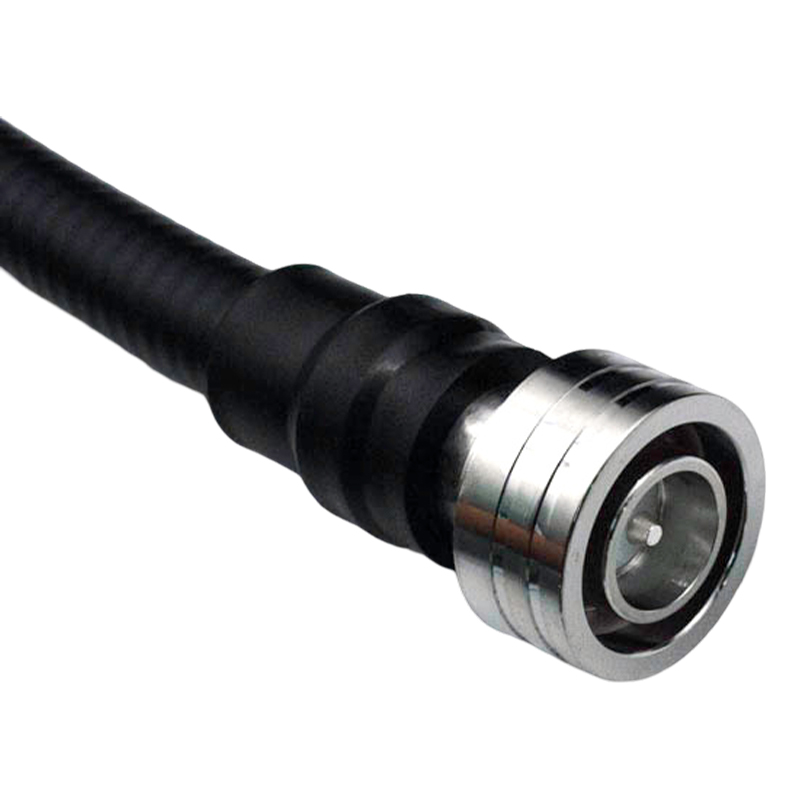

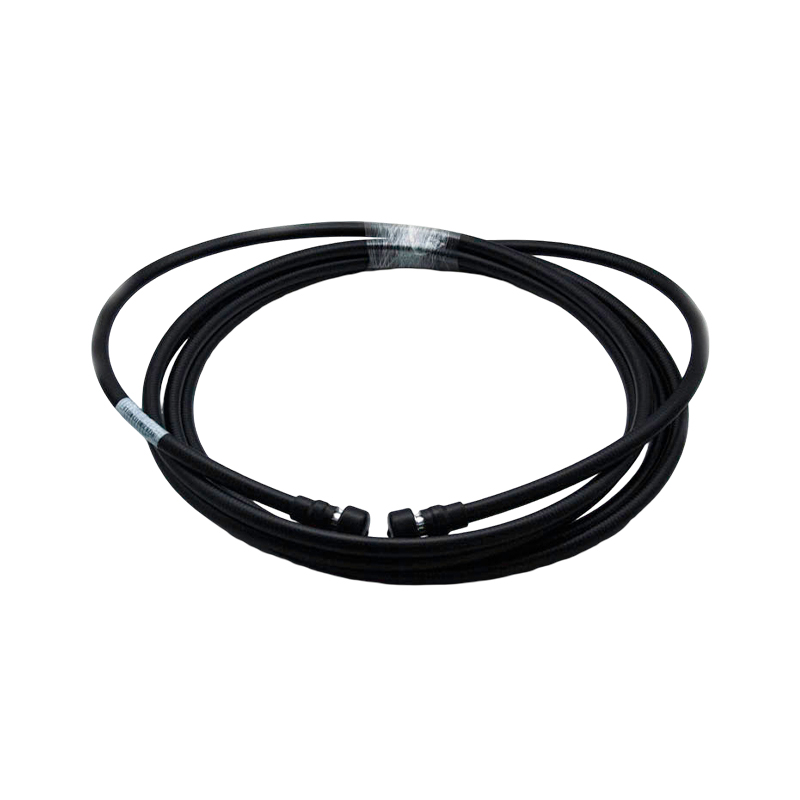

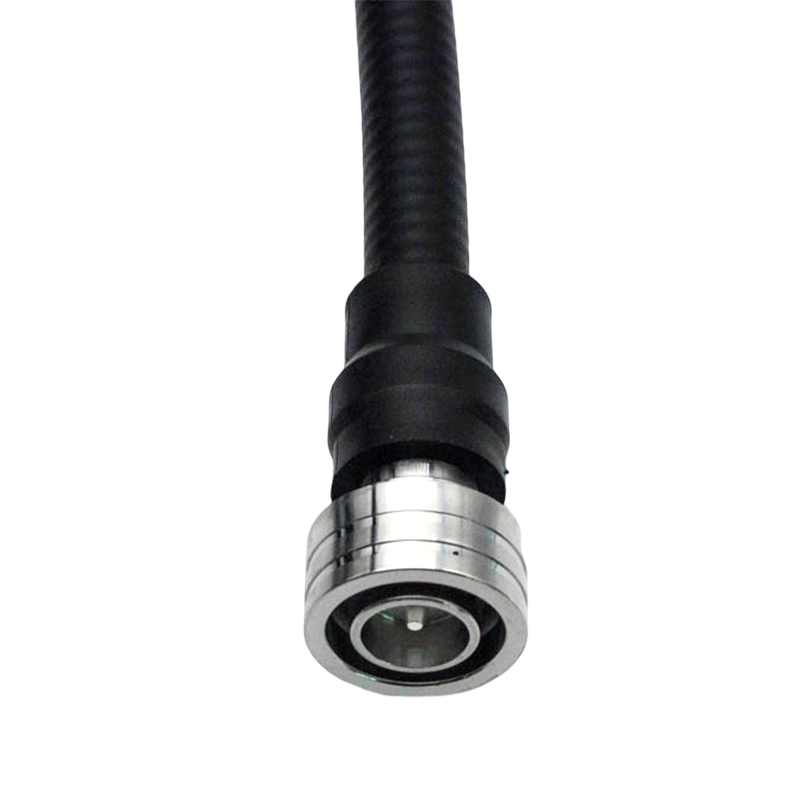

1-2 Superflex Jumper, Quick type 4.3-10 Male to Quick type 4.3-10 Male

1-2 Superflex Jumper, Quick type 4.3-10 Male to Quick type 4.3-10 Male

Model:Q4.3-10-H-J1-2S-1-Q4.3-10-H-J1-2S-1-L(m)

Consultation

Technical Indicators Packing

SPECIFICATION
1-2 Superflex Jumper, Quick type 4.3-10 Male to Quick type 4.3-10 Male








P/N:Q4.3/10-H-J1/2S-1/Q4.3/10-H-J1/2S-1-L(m)
Interface
According to		IEC 61169-54
Electrical
Characteristic Impedance		50 ohm
Freqency Range		DC-3GHz
VSWR		≤1.15(0-3GHz)
PIM (@2-tonex20w)		≤-160dBc
Dielectric Withstanding Voltage		≥2500V RMS,50Hz,at sea level
Dielectric Resistance		≥5000MΩ
Contact Resistance		Center Contact ≤1.0mΩ
		Outer Contact ≤1.0mΩ
Mechanical
Durability		Mating cycles ≥100 cycles
Material and plating
	Material		Plating
Body	Brass		Tri-alloy
Insulator	PTFE		-
Center conductor	Phosphor bronze/Brass		Ag
Others	Brass		Ni
Environmental
RoHS-compliance		Full RoHS compliance
Temperature Range		-40℃～+85℃
Watertightness		IP68
Salt-fog test		96h

RF-Combination connectors of different connector series can be assembled as either straight or angle versions by using the corresponding clamps. With only one combination connector and the different cable clamps, a variety of connectors can be produced allowing a reduction in stock-levels. The technical specifications can be obtained from the descriptions in the respective chapters for each series.
For example: for ½” or ½”superflex jumper cable, DIN male straight(right angle)
on both sides, VSWR can reach less than 1.10@(0-3)GHz,
1.20@(0-6)GHz PIM less than -160dBc@(2-tone × 20W)

The packing pictures are only for reference, all packing can be customized by different requirements
